Conveyor belt scales
AViTEQ Conveyor belt scales enable precise dynamic weighing of raw materials directly in their process environment, even under problematic environmental influences. Our checkweighers deliver reliable results with low investment for applications ranging from low to high loads.
At a glance
-

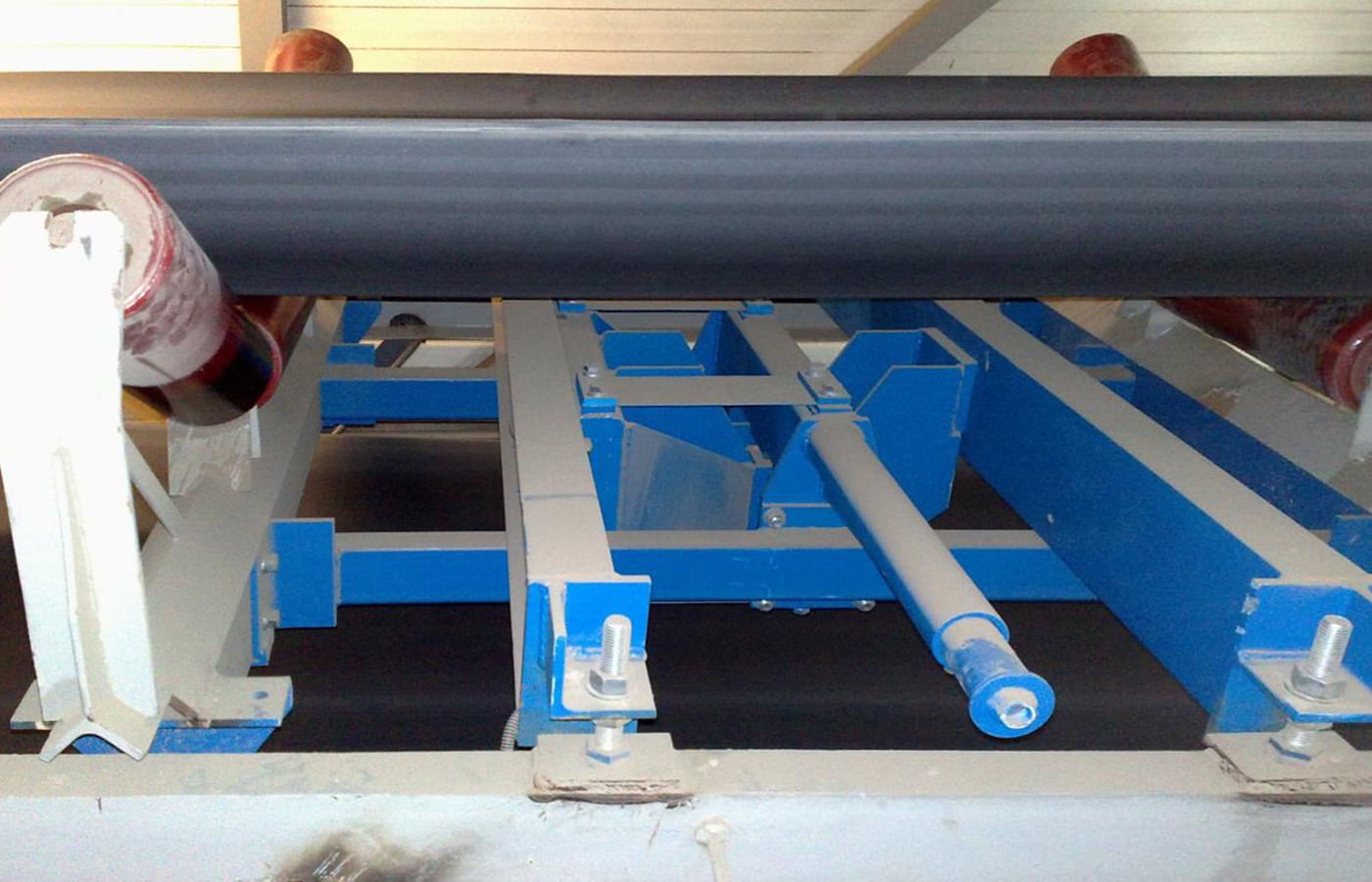

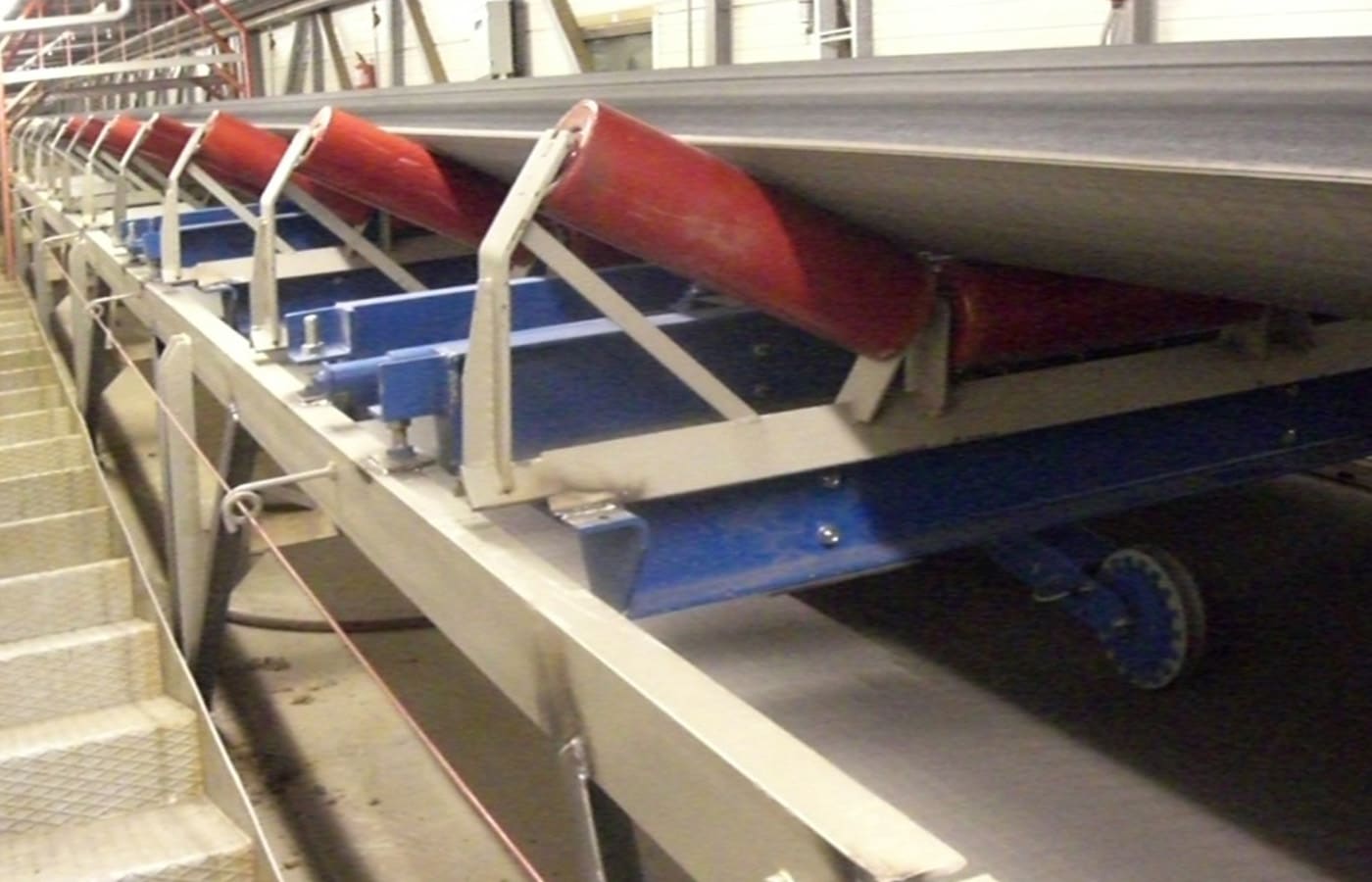

AViTEQ Conveyor belt scales weigh continuous material flows of bulk materials to determine throughput rates and consumption in production plants. Thanks to their simple installation, our precise conveyor belt scales can be flexibly integrated into an existing conveyor belt — thus keeping investment costs low.
- AViTEQ Conveyor belt scales are characterized by their high, permanent weighing accuracy. Their robust design with direct load transmission makes them largely insensitive to vibrations and shocks, as well as environmental conditions such as exposure to water, dust, or strong temperature fluctuations.
- AViTEQ Conveyor belt scales are easy to operate and continuously record weight and belt speed to determine the conveying rate of all kinds of bulk materials per time unit, as well as the daily throughput or a batch weight. The system tolerance ranges from ±0.25% to ±1.00%, depending on the version.
High accuracy under difficult conditions

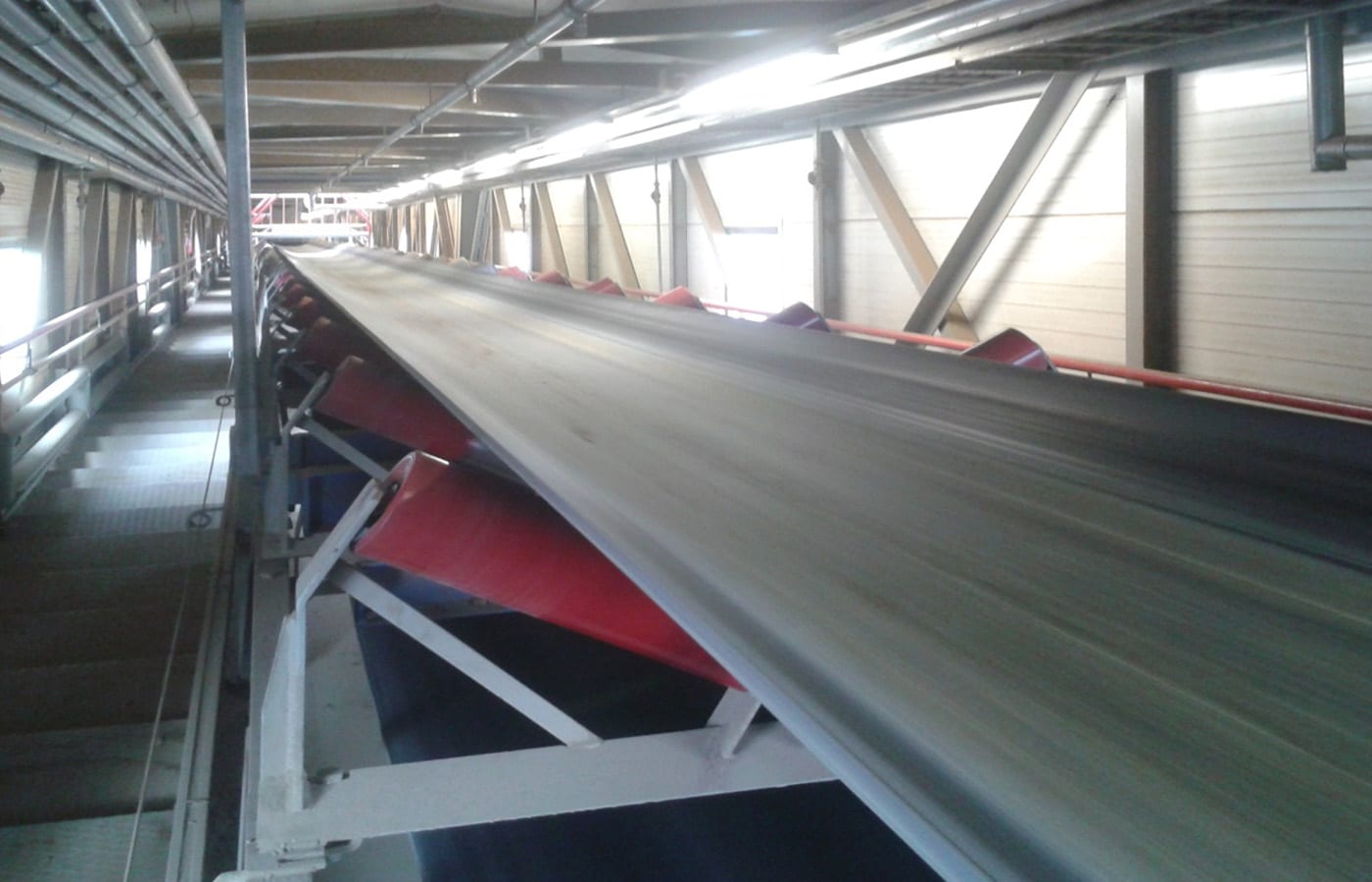

AViTEQ Conveyor belt scales enable the continuous weighing of a wide variety of bulk materials on conveyor belts. Our checkweighers are designed so that they can be easily integrated into an existing conveyor belt. They are used in gravel works, quarries, mining and tunnel construction as well as in recycling. In other words, wherever precise dynamic weighing of raw materials directly in the process environment must be guaranteed, even in problematic environmental conditions. With a throughput of up to 6,000 t/h, they monitor the material flow and calculate the production quantity for each specified time interval.
- Gravimetric measurement
- High throughput of up to 6,000 t/h
- Robust construction
- Use under difficult conditions
- High and permanent weighing accuracy
- Low capital expenditure
- Simple assembly and installation
- Flexible integration into existing systems
| Technical data | WBS-1 | WBS-2 | WBS-4 |
|---|---|---|---|
| Measurement tolerance | ±1% *) | ±0,5% *) | ±0,25% *) |
| Delivery rate (t/h) | ≤ 6.000 | ≤ 6.000 | ≤ 6.000 |
| Belt speed (m/s) | ≤ 3,5/6,0 | ≤ 3,5/6,0 | ≤ 3,5/6,0 |
| Ambient temperature | -25°C bis +45°C | 25°C bis +45°C | 25°C bis +45°C |
| Protection class | IP68, IP65 | IP68, IP65 | IP68, IP65 |
