Controller

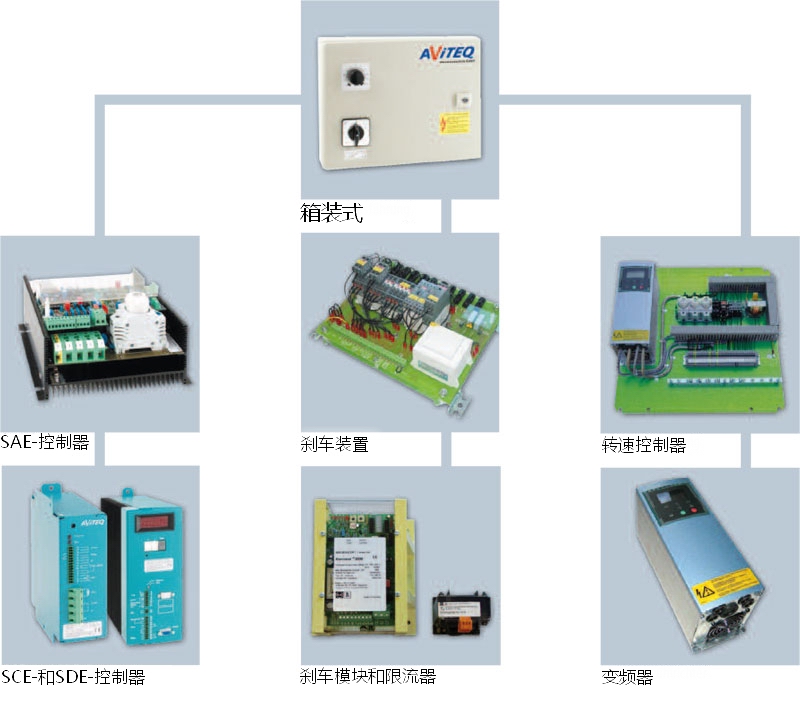

   AViTEQ's Vibtronic® series of controllers is designed for the operation control of vibrators, and in addition to the basic functional features, AViTEQ also has a special series designed for specific working environments, which can be used to control vibrations in a wide variety of areas.

VIBTRONIC-S® series controllers
are specially designed to control the AC voltage supplied to the electromagnetic vibrator and work on the principle of effective voltage regulation (ignition angle control). For all standard voltages in 50Hz and 60Hz grids, AViTEQ is available in both tray-mounted (for integration into enclosures) and box-mounted (with enclosures, ready-to-use in-situ). All controllers are self-compensating for voltage fluctuations on the external network, and some models also have a protective control to prevent the internal "hammering" of the electromagnetic vibrator. The amplitude setting of the vibrator can be achieved by a potentiometer connected to the controller or an external control signal (0-10VDC or 0/4-20mA). The operating status of the vibrating device can be output via the status relay built into the controller and the LED indicator on the controller. All models can be matched with electromagnetic vibrators with a maximum operating current of 100A. With the corresponding accessories, one controller can control multiple electromagnetic vibrators at the same time, and can also realize the control of the two-way feeder with reversible output direction.

VIBTRONIC-U® series brakes
Specially serving the vibration motor, the main function is to make the vibration motor can brake quickly when the equipment is stopped. Whether the motor is regulated or unregulated, with or without PTC thermistor protection, AViTEQ has the right brake system for the application. If necessary, we can also provide special solutions for customers' special applications or problems.
The brakes of the VIBTRONIC-U series also provide monitoring of lateral vibrations® (lateral oscillations of the machine).

VIBTRONIC-U® series speed controllers
Designed for continuous speed adjustment of drives such as vibrating motors and eccentric shakers, these controllers can adjust the conveying capacity of the feeder between 30 and 100% of the rated capacity. In addition, they can be used for special tasks, such as material compaction or foreign matter separation. The
VIBTRONIC-U® series speed controllers are specially designed for AViTEQ's vibrating motors and are resistant to high currents when the motor is started.
