失重称量系统

The AViTEQ loss-in-weight weighing feeder is used for continuous weighing and metering of bulk materials that do not have the characteristics of moisture absorption, bonding, etc., including bulk materials with the following characteristics:

  • Fragile (e.g. food).
  • Abrasives (e.g. coarse, fine, coarse).
  • Refractory materials (e.g. fibers, glass fibers, pharmaceutical powders).

It is suitable for any occasion that requires weighing accuracy for main materials or additives. It is an ideal solution for the following industries:

  • Food and feed
  • Pharmaceutical
  • Chemicals

Features & Benefits

:
  • Reduction of shear forces and pressures on the material;
  • There is no dead angle in the hopper (easy to clean quickly);
  • Vibration drives are maintenance-free;
  • Very gentle weighing process (volumetric and gravity weighing);
  • Extremely high weighing accuracy;
  • Great capacity

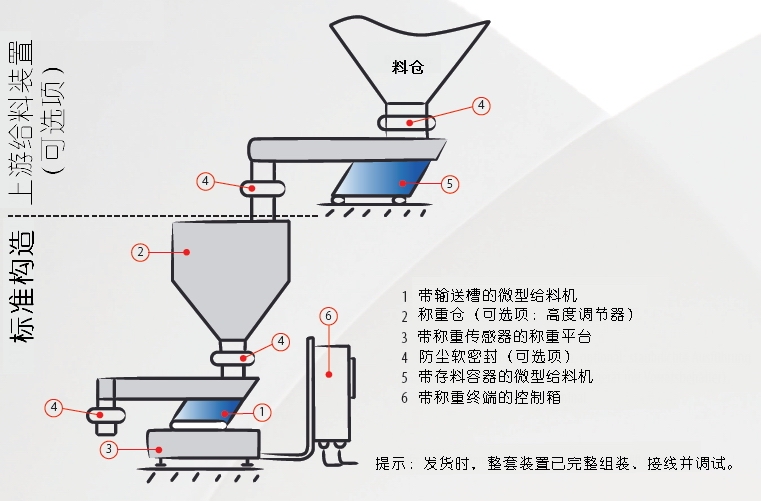

Composition

technical data WLW-L WLW-M WLW-H
chute length (mm). 275 - 1.100 275 - 1.100 275 - 1.100
Groove width(mm) 13 - 400 13 - 400 13 - 400
velocity of flow (m3/h) 0,4 - 800 1,0 - 5.000 10,0 - 25.000
ambient temperature -25°C to +45°C -25°C to +45°C -25°C to +45°C

The maximum material temperature can reach 100°C

Stainless steel material optional;

Special editions are available on demand;

special version of the weighing feeder:

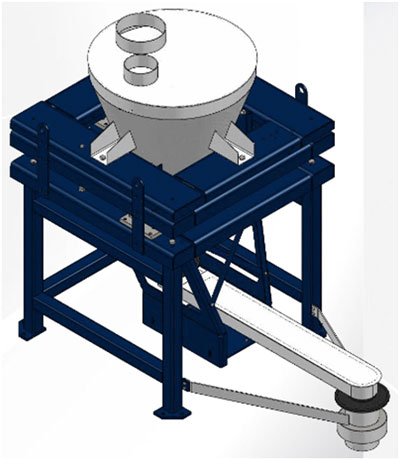

Pictures of the device
