Bin-activator

activated hopper is a kind of silo arch breaking feeding device, which is installed at the bottom of the silo to play the role of arch breaking and uniform feeding. AViTEQ activation bucket has good arch breaking performance, and can achieve arch breaking and continuous uniform discharge for all kinds of powdery and granular materials in the silo; And it can eliminate the segregation phenomenon of mixed materials with different particle sizes and different specific gravity when entering the silo.

Features & Benefits

• Simple structure, reliable operation, stable operation and low noise;
• Low energy consumption, long life, small maintenance workload;
• Suitable for any silo made of round, square, steel or concrete
• Completely sealed conveying, dust does not rise, does not pollute the environment

Construct features

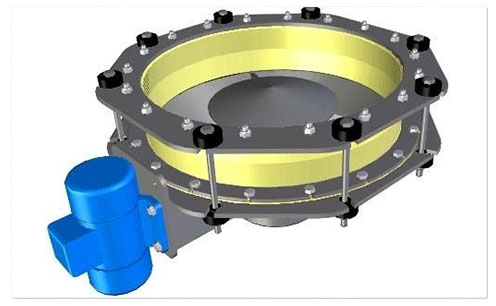

Compact design, one or two vibrating motors are mounted on the side of the activated hopper.

Design selection

The dimensions of the activated hopper depend on:

• Structure of the upper silo
• Characteristics of the material being handled and the amount of material discharged
• Interfaces to downstream devices

Construction

• Diameter: up to 4.0 m
• Wide drive options: vibrating motors
